Type 39.00 - MasterINTERFACE – MasterBASIC SSR Relay Interface Module

  • Common connection of terminals A1, A2 and 13+ with the jumper link
  • UL Listing (relay/socket/jumper link)

Type 39.01 - MasterINTERFACE – MasterBASIC EMR Relay Interface Module 6A

  • Coils from 6 to 125 V AC/DC, 125 and 220 V DC, 230 V AC and 24… 240 V AC/DC.
  • Screw terminals and Push-in terminals

Type 39.10 - MasterINTERFACE - MasterBASIC SSR Relay Interface Module

  • Common connection of terminals A1, A2 and 13+ with the jumper link
  • UL Listing (relay/socket/jumper link)

Type 39.11 - MasterINTERFACE – MasterBASIC EMR Relay Interface Module 6A

  • Electromechanical relay
  • AC or AC/DC power supply

Type 39.20 - MasterINTERFACE – MasterOUTPUT SSR Relay Interface Module

  • jumper link for quick and easy distribution of the supply voltage via the BB (Bus-Bar) terminal on the output for connection with solenoid valves, relays or similar loads
  • UL Listing (relay/socket/jumper link)

Type 39.21 - MasterINTERFACE – MasterOUTPUT EMR Relay Interface Module 6A

  • Jumper link for quick and easy distribution of the supply voltage via the BB (Bus-Bar) terminal on the output and connection with solenoid valves, relays or similar loads
  • UL Listing (relay/socket/jumper link)

Type 39.30 - MasterINTERFACE – MasterPLUS SSR Relay Interface Module

  • Accepts the Type 093.63, 093.63.0.024, 093.63.8.230 fuse holder modules (for 5 x 20 mm fuses) which allows protection of the output circuit saving space
  • Common connection of terminals A1, A2 and 11 with jumper link

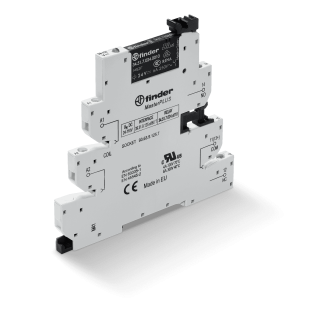

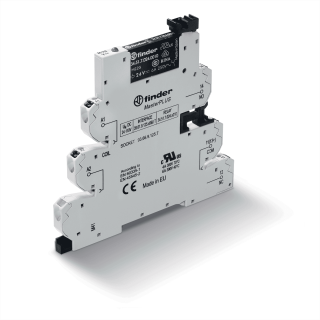

Type 39.31 - MasterINTERFACE – MasterPLUS EMR Relay Interface Module 6A

  • Coils from 6 to 125 V AC/DC, 125 and 220 V DC, 230 V AC and 24… 240 V AC/DC
  • Special residual current suppression circuit, 125 V AC/DC and 230 V A

Type 39.40 - MasterINTERFACE - MasterINPUT SSR Relay Interface Module

  • Quick and easy distribution of power via the jumper link on the terminals
  • BB (Bus-Bar) to facilitate use of proximity switches and other input devices

Type 39.41 - MasterINTERFACE – MasterINPUT EMR Relay Interface Module 6A

  • Quick and easy distribution of power via the jumper link on the terminals BB (Bus-Bar) to facilitate use of proximity switches and other input devices
  • Standard gold-plated contacts, to improve compatibility with the low signals of the PLC inputs

Type 39.50 - MasterOUTPUT - SSR - Relay interface module

  • Sensitive DC, AC or AC/DC input voltage
  • AC or DC output switching (1 NO)

Type 39.51 - MasterOUTPUT - EMR - Relay interface module 6A

  • Sensitive AC or AC/DC coil versions
  • 1 CO 6 A contact

Type 39.60 - MasterPLUS - SSR - Relay interface module

  • Sensitive DC, AC or AC/DC input voltage
  • AC or DC output switching (1 NO)

Type 39.61 - MasterPLUS - EMR Relay interface module 6A

  • Sensitive DC, AC or AC/DC coil versions
  • 1 CO 6 A contact

Type 39.70 - MasterINPUT - SSR - Relay interface module

  • 1 Pole
  • 6.2 mm wide

Type 39.71 - MasterINPUT - EMR - Relay interface module 6A

  • 1 Pole
  • 6.2 mm wide

Type 39.80 - MasterTIMER - SSR - Relay interface module

  • Start terminal
  • DIP-switch for selection of 4 time scales and 8 functions

Type 39.81 - MasterTIMER - EMR - Relay interface module 6A

  • Control signal terminal
  • DIP-switch for selection of 4 time scales and 8 functions

Type 39.90 - MasterTIMER - SSR - Relay interface module

  • Start terminal
  • DIP-switch for selection of 4 time scales and 8 functions

Type 39.91 - MasterTIMER - EMR relay interface module 6A

  • Control signal terminal
  • DIP-switch for selection of 4 time scales and 8 functions

ACCESSORIES

093.63

Output fuse module

For 39.31/30/81/80/61/60/91/90 types.

– For 5 x 20 mm fuses up to 6 A, 250 V
– Easy visibility of the fuse condition through the window
– Quick connection

093.63.8.230

Output fuse module

-110…240 AC with LED fuse status indicator

– Quick connection to socket

093.16

16-way jumper link

Rated values: 36A – 250 V

Possibility of multiple connection, side by side.

093.16 (blue)

093.16.0 (black)

093.16.1 (red)

093.60

Dual-purpose plastic separator

– 1.8 mm or 6.2 mm separation

093.48

Sheet of marker tags

– Plastic

-48 tags

-6 x 10 m

060.48

Sheet of marker tags

-CEMBRE Thermal transfer printers
-48 tags
-6 x 12 mm

093.62

Terminal doubler

-For Push-in sockets only
-Solid and stranded cable

093.68.14.1

MasterADAPTER

The MasterADAPTER permits the easy connection of A1/A2 terminals of up to 8 MasterINTERFACE modules to PLC outputs via a 14-Pole ribbon cable, plus simple 2-wire power supply connection ATEX Version.

093.00020

PLC cable

-Lenght: 2 metres
-Operating voltage: 35 V
-Number of poles: 14
