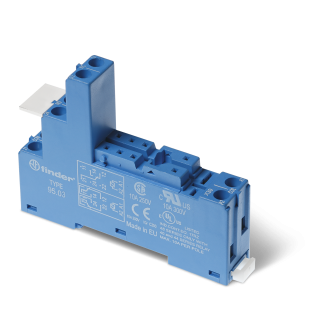

Type 95.03 - socket with screw (box clamp) terminals
- Nominal rating 10 A - 250 V
- Dielectric strength between coil and contacts (1.2/50 μs) 6 kV
Explore finder
GO TO
Types List
Types List
Documentation
Approvals
Type 95.05 - socket with screw (box clamp) terminals
- Nominal rating 10 A - 250 V
- Dielectric strength between coil and contacts (1.2/50 μs) 6 kV
Type 95.13 - PCB socket
- Nominal rating 12 A - 250 V
- Dielectric strength between coil and contacts (1.2/50 μs) 6 kV
Type 95.15 - PCB socket
- Metal retaining clip
- Plastic retaining clip 095.52 (40 Series relays)
Type 95.23 - PCB socket (for changeover contacts only)
- Nominal rating 12 A - 250 V
- Insulation 6 kV (1.2/50 µs) between coil and contact
Type 95.63 - Screw terminal (Box clamp) socket
- For 40 Series relays, type 40.31
- Panel or 35 mm rail mount
Type 95.65 - Screw terminal (Box clamp) socket
- For 40 Series relays, type 40.51, 40.52, 40.61, 40.62.
- Panel or 35 mm rail mount
Type 95.83 - Screw terminal (Box clamp) socket
- For 40 Series relays, type 40.31.
- Panel or 35 mm rail mount
Type 95.85 - Screw terminal (Box clamp) socket
- Panel or 35 mm rail mount
- For 40 Series relays, type 40.51, 40.52, 40.61, 40.62.
Type 95.93 – Screw terminal (Box clamp) socket
- For type 40.31
- 35 mm rail mount
Type 95.95 - Screw terminal (Box clamp) socket
- For 40 Series relays, type 40.51, 40.52, 40.61, 40.62.
- Panel or 35 mm rail mount
Type 95.P3 - Socket with Push-in terminals
- Nominal rating 10 A - 250 V
- Dielectric strength between coil and contacts (1.2/50 μs) 6 kV
Type 95.P5 - Socket with Push-in terminals
- Nominal rating 10 A - 250 V
- Dielectric strength between coil and contacts (1.2/50 μs) 6 kV
ACCESSORIES
Plastic retaining and release clip
Available:
-095.91.3 (blue)
-095.91.30 (black)
Sheet of marker tags
-plastic
-48 tags,
-6 x 12 mm
8-way jumper link
Rated values: 10 A – 250 V
2-way jumper link
– 12.5 mm pitch
– Rated values: 10 A – 250 V
2-way jumper link
– 4.6 mm pitch
Marker tag holder
For 95.P3 and 95.P5 sockets
Plastic retaining and release clip
Available:
-095.01 (blue)
-095.01.0 (black)
8-way jumper link
Available:
-095.18 (blue)
-095.18.0 (black)
8-way jumper link
Available:
-095.08 (blue)
-095.08.0 (black)
Metal retaining clip
