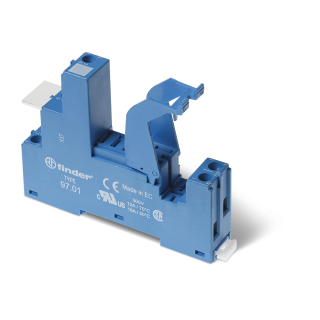

Type 97.01 - Socket with screw (box clamp) terminals
- Nominal rating 16 A-250 V AC 8 A-250 V AC
- Dielectric strength 6 kV (1.2/50 μs) between coil and contacts
Explore finder
It looks like you're in the USA
Do you wish to stay on the Finder website Kosovo or would you like to change country? Surfing the Finder USA website will let you find relevant information, such as country specific and local events and promotions.
Explore more
97 Series
Sockets for 46 Series relays
Function and features
The 97 Series comprises a range of sockets (including timed sockets) for the 46 Series relays.
Features include (according to Type):
- Mounting: PCB, Panel (screw), 35 mm rail (EN 60715)
- Connection: PCB, Screw terminal, Screwless terminal, Push-in
Types List
ACCESSORIES
Documentation
Approvals
Type 97.02 – Socket with screw (box clamp) terminals
- Nominal rating 16 A-250 V AC 8 A-250 V AC
- Dielectric strength 6 kV (1.2/50 μs) between coil and contacts
Type 97.11 - PCB socket
- Nominal rating 12 A - 250 V (see diagram L97) 8 A - 250 V
- Dielectric strength 6 kV (1.2/50 μs) between coil and contacts
Type 97.12 - PCB socket
- Nominal rating 12 A - 250 V
- Dielectric strength 6 kV (1.2/50 μs) between coil and contacts
Type 97.P1 - Socket with Push-in terminals
- Nominal rating 10 A-250 V AC 8 A-250 V AC
- Dielectric strength 6 kV (1.2/50 μs) between coil and contacts
Type 97.P2 - Socket with Push-in terminals
- Nominal rating 10 A-250 V AC, 8 A-250 V AC
- Dielectric strength 6 kV (1.2/50 μs) between coil and contacts
