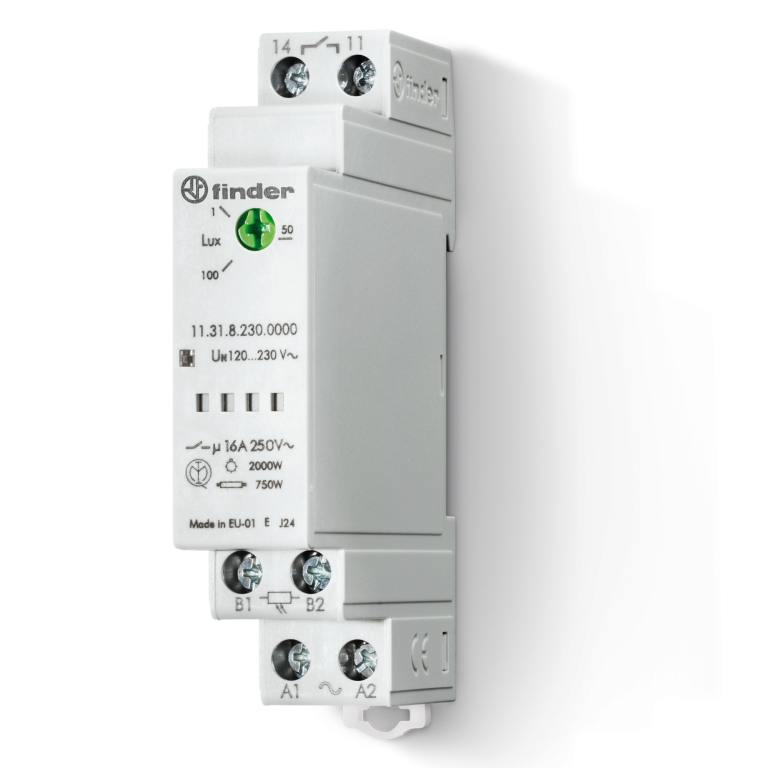

Type 11.31 Light Dependent Relays, “twilight switches” for switching on lamps according to the level of ambient light, supplied with separate photosensitive element. Equipped with 1 NO 16 A contact, sensitivity adjustment from 1 to 100 lux, one module, 17.5 mm wide. Low consumption in stand-by. Version for 24 V DC/AC supply, and version for 110…230 supply.
- First 3 operating cycles of the relay without delay at switching on and off, in order to facilitate the adjustment process by the installer
- LED indicators
- SELV separation between power supply circuit and contacts
- Double insulation between power supply and photosensor
- 35 mm rail (EN 60715) mounting
- Cadmium-free contacts
- Cadmium-free photosensor element (IC photo diode)
