New magnetic blow-out relay for high DC switching

When the need to switch high DC currents exists, Finder’s extended range of 62 Series relays now includes a Magnetic Blow-Out version, capable of switching loads as high as 12 A at 220 V DC. Targeting the heavy-duty switching of contactors and large circuit breaker trip coils this...

NEW PRODUCTS

When the need to switch high DC currents exists, Finder’s extended range of 62 Series relays now includes a magnetic blow-out version, capable of switching loads as high as 12 A at 220 V DC.

Targeting the heavy-duty switching of contactors and large circuit breaker trip coils this version has been specially developed to offer a high-performance product that is both smaller and more competitively priced than many other current offerings.

The new relays incorporate a powerful, rare-earth magnet, neodymium, which blows-out the electrical arc and breaks DC circuits more quickly and efficiently, allowing contacts to be rated at a higher DC current, whether resistive or inductive loads.

The 62 Series range is now extended by these two high performance and cost effective versions—a single pole, double break version (62.31) and a two-pole, single break (62.32) version. Available in DC coil voltages from 6 to 24 V DC, these relays are rated for -40C – +70C environments.

Type 62.32 and 62.32

New magnetic blow-out relays for high current DC loads such as, motors, circuit breakers, electromagnets and electromagnetic valves.

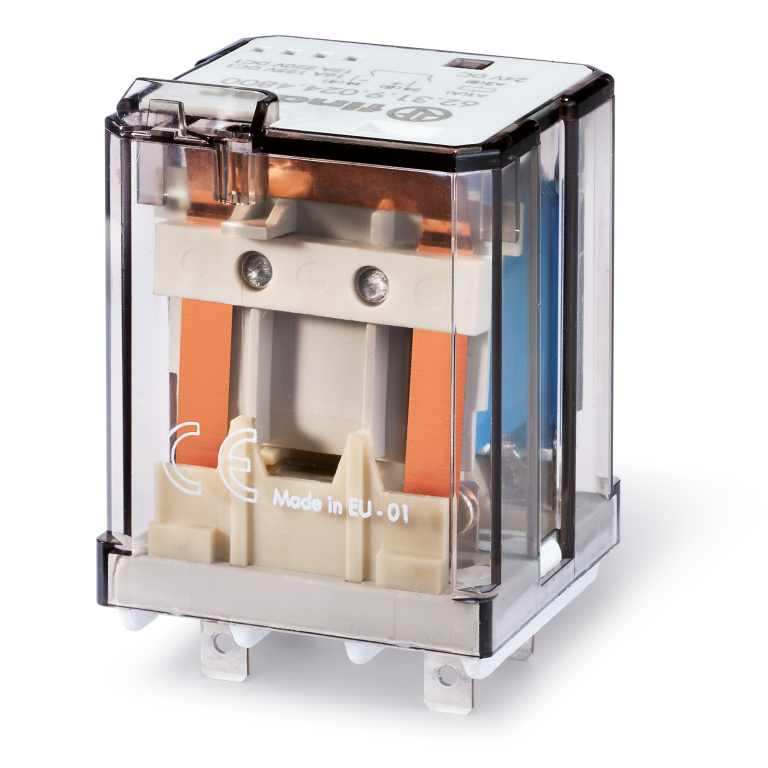

Type 62.31

Function and features:
Type 62.31 Magnetic blow-out relay, 1 NO 16 A double break contact, with breaking capacity DC1: – 16 A at 125 V – 12 A at 220 V.

Features include:

  • Coil nominal voltages 12, 24, 110, 125, 220 V DC
  • With magnetic blow-out feature
  • Contact gap > 4 mm
  • Coil power 1.3 W
  • 6kV Insulation between coil and contacts
  • AgSnO2 contacts
  • Operating temperature –40… + 70 ° C

Type 62.32.9.xxx.4800

Function and features:

  •  2 pole normally open contacts rated 16 A (≥ 2.1 mm contact gap)
  •  Breaking capacity DC: – 12 A @ 125 V – 6 A @ 220 V
  •  Nominal coil voltage 12, 24, 110, 125, 220 V DC
  •  Magnetic blow-out
  •  Coil power 1.3 W
  •  6kV Insulation between coil and contacts
  • Contacts material AgSnO₂
  •  Ambient temperature range –40…+70° C.
