NEW 16A YESLY MULTIFUNCTION BLUETOOTH RELAY

This new 16A multifunction relay is intended to support the expansion and customization of Smart home systems.

FOCUS PRODOTTI

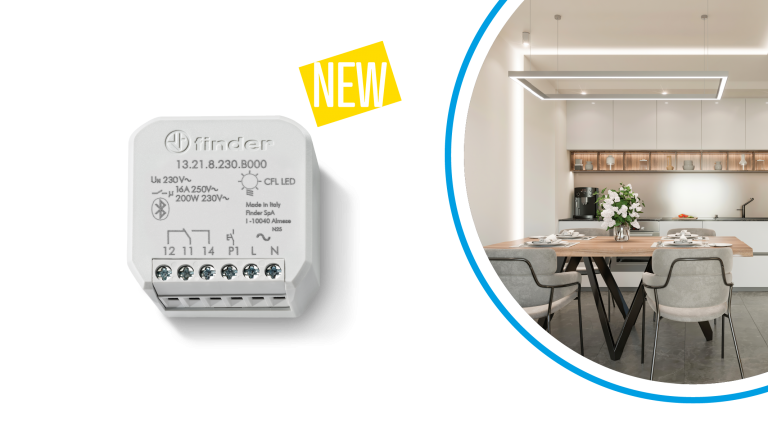

Finder’s Type 13.21.8.230.B000 YESLY multifunction relay features a volt-free changeover contact and BLE technology and can be easily integrated into the YESLY Smart home system.

Thanks to the volt-free output contact with its 16A capability this newcomer to Finder’s 13 Series of products is particularly suitable for interfacing with other circuits in residential applications such as in the case of controlled sockets or electric locks but is equaly suited to the management of higher power loads and for interfacing with almost any AC/DC circuit.

TECHNICAL FEATURES OF THE PRODUCT

The 13.21.8.230.B000 YESLY multifunction relay is characterized by a single 16A changeover output contact, 12 selectable functions – including “RIa – Pulse relay (switch control)” and various timed functions (see table 1). Besides its maximum 16A switchable load current, it is also notable for having an input for wired pushbuttons and for the possibility of managing up to 8 YESLY scenarios.

It also boasts zero-crossing switching.

Similar in design to the Type 13.22 multifunction relay, the new Type 13.21.8.230.B000 YESLY multifunction relay differs in some technical features, which make it specifically suited for particular applications.

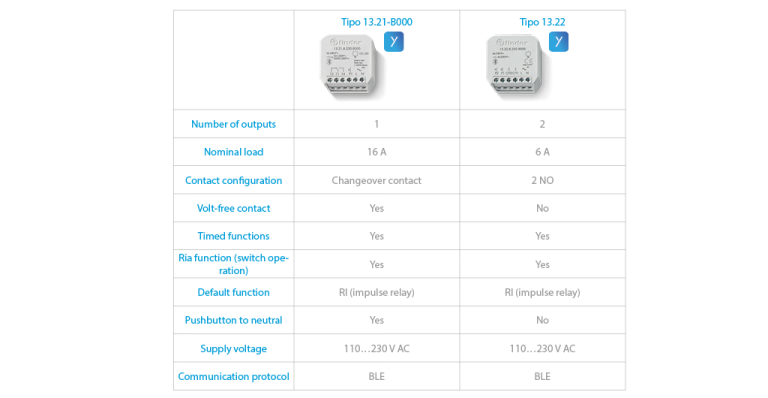

Below is a summary of the two products.

CONFIGURATION WITH THE FINDER APP

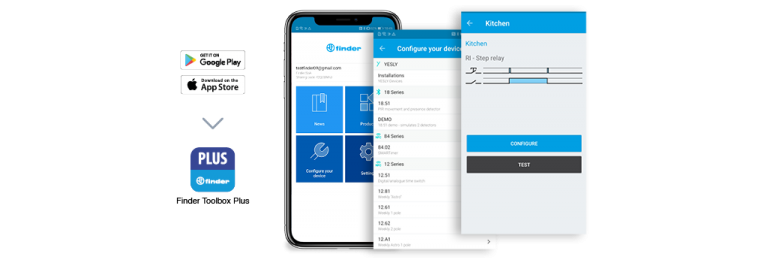

The configuration of the Type 13.21.8.230.B000 takes just a few simple steps through the free “Finder Toolbox PLUS” app, available for iOS and Android.

In addition to product configuration with the Toolbox Plus App you can:

  • set the functions quickly;
  • associate wireless buttons, input interfaces and create customized scenarios;
  • deliver the system to the end customer with complete confidence.

NEW 35MM RAIL ADAPTER

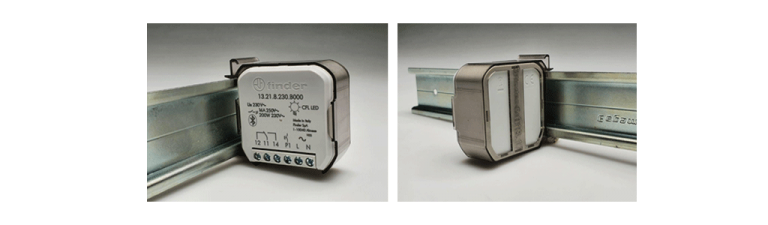

This new YESLY multifunction relay, designed primarily for installation in recess mounted junction boxes, can also be mounted on a 35mm Rail thanks to the new Type 013.17 adapter.

The 13.21.8.230.B000 is flexible and versatile, it’s easily and simply configured and offers a minimally invasive solution for progressive system updates and expansion. It is compatible with the new radio frequency actuator (13.21.8.230.S000) for the BLISS2 Smart thermostat as well as all the other Finder YESLY devices for mounting in electrical boxes – as listed below:

YESLY IS THE SMART AND SCALABLE SOLUTION FOR YOUR HOME

The YESLY system transforms any home into a Smart home in a few simple steps and allows for quick, easy and guided product installation and programming. With YESLY devices you can achieve centralised control within the home via Bluetooth, or by adding GATEWAY2 you can extend control of the system via voice assistants or from remote locations.

In addition, the BLISS2 Smart thermostat as well as YESLY devices can also be controlled via the 1Y.GU.005.1 GATEWAY2 achieving an ever more integrated home.

REQUEST PERSONALIZED ADVICE!!

FOR MORE INFORMATION ABOUT THE PRODUCTS THE SELECTION GUIDE YESLY + BLISS2 IS AVAILABLE.
