New direct-switching LED panel lights

The Finder 7L Series LED panel lights now includes new 1200 lumen versions with direct switching

NEW PRODUCTS

Safety, elegant design and versatility of use are just some of the features of the Finder 7L Series.

Designed to offer a quality solution suitable for almost any environment, the Finder range of LED panel lights for electrical enclosures is now available in 20 different versions, thanks to the latest additions to the range comprising the Type 7L.46.0.xxx.0x00.

Available from January 2021, the new 1200 lumen models with direct switching complement the range, which already includes several 600 lumen versions.

Technical features

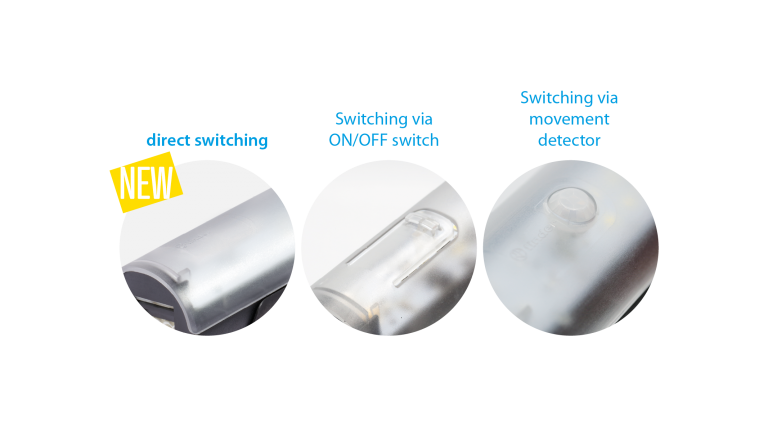

The new Type 7L.46.0.xxx.0x00 1200 lumen versions have direct switching (without ON/OFF switch or motion detector), a rated power of 9 W, a viewing angle of 120° to ensure a optimal functionality and ‘Made in Italy’ design by the Minelli – Fossati design studio. Options include Push-in terminals for the connection of a single panel light (Type 7L.46 .0.xxx.0100) or Plug-in terminals for single or multiple connection (Type 7L.46.0.xxx.0200).

For more information on the technical features of the entire range, download the 7L Series datasheet.

Applications

The new 7L Series 1200 lumen versions with direct switching are particularly suitable for applications where remote switching is required (such as via microswitches or limit switches). For example, the connection of the new Type 7L.46 models with direct switching via a door management microswitch within an electrical panel allows the lamp to be switched on and off as the panel door opens or closes. There therefore do not need an integrated ON/OFF switch or motion detector.



>> Do you need technical / commercial support or require a personalized offer? Contact us!
