Type 8A.04 - OPTA Programmable Logic Relay (PLR)
- Programmable without licenses using Arduino IDE or IEC/EN 61131 programming languages such as LADDER, FBD, etc.
- Programmabile with Codesys (only Type 8A.04-832C)
Explore finder
Explore more
8A Series
OPTA Programmable Logic Relays
Function and features:
Opta is the first Programmable Logic Relay innovative and connected with Ethernet, Wi-Fi, Bluetooth® Low Energy technology. Programmable without licenses using Arduino IDE or IEC/EN 61131 programming languages such as LADDER, FBD, etc. Programmable also with Codesys (only Type 8A.04-832C). Enhanced IoT security thanks to its secure element chip.
Technical features:
- 12…24 V DC input voltage
- 8 digital/analogue inputs
- 4 10 A relay outputs
- Port for auxiliary module
- Powerful CPU (STM32H747XI Dual-Core CORTEX®-M7+M4 MCU)
- Enhanced IoT security thanks to its secure element chip
Available in 3 versions
- LITE – 8A.04.9.024.8300
- PLUS – 8A.04.9.024.8310
- ADVANCED – 8A.04.9.024.832x
Applications
Types List
ACCESSORIES
Documentation
Approvals
Video
Tutorials and Software

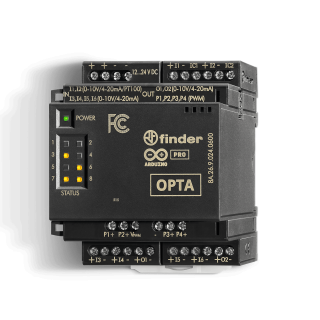

Type 8A.26 - OPTA expansion analog version
- 4 PWM outputs
- 6 analog inputs and 2 analog outputs
Type 8A.58 - OPTA expansion module EMR version
- 16 digital/analog (0…10 V) inputs
- 8 EMR 6 A outputs

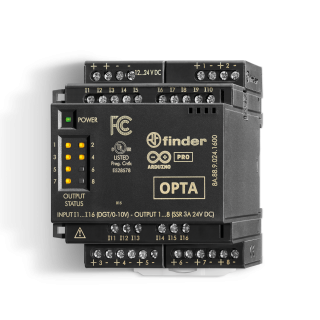

Type 8A.88 - OPTA expansion module SSR version
- 16 digital/analog (0…10 V) inputs
- 8 SSR 3 A outputs
