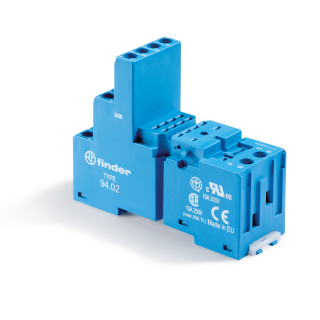

Type 94.02 - PCB socket
- For use with Type 55.32 relays
Explore finder
Explore more
94 Series
Sockets for 55 and 85 series relays
Function and features:
The 94 Series comprises a wide range of sockets (including timed sockets) for the 55 Series relays.
Features include (according to Type):
- Mounting: PCB, Panel (screw), 35 mm rail (EN 60715)
- Connection: PCB, Solder (direct), Screw terminal, Screwless terminal, Push-in
Types List
ACCESSORIES
Documentation
Approvals
Video
Type 94.03 - PCB socket
- For relay type 55.33
Type 94.04 - Screw terminal (Box clamp) socket
- For use with Type 55.34 and 55.34 relays
Type 94.12 - PCB socket
- Nominal rating 10 A - 250 V
- Dielectric strength 2 kV AC
Type 94.13 - PCB socket
- Nominal rating 10 A - 250 V
- Dielectric strength 2 kV AC
Type 94.14 - PCB socket
- Nominal rating 10 A - 250 V
- Dielectric strength 2 kV AC
Type 94.22 - Panel mount solder socket
- Metal retaining clip
- Nominal rating 10 A - 250 V
Type 94.23 - Panel mount solder socket
- Nominal rating 10 A - 250 V
- Dielectric strength 2 kV AC
Type 94.24 – Panel mount solder socket
- Metal retaining clip
- Nominal rating 10 A - 250 V
Type 94.32 - Panel mount socket
- Metal retaining clip
- Nominal rating 10 A - 250 V
Type 94.33 - Panel mount socket
- Nominal rating 10 A - 250 V
- Dielectric strength 2 kV AC
Type 94.34 - Panel mount socket
- Metal retaining clip
- Nominal rating 10 A - 250 V
Type 94.54 - Screwless terminal socket
- For Panel or 35mm rail mount
- For 55 Series relays, Type 55.32 and Type 55.34
Type 94.72 - Screw terminal (Plate clamp) socket
- 35 mm (EN 60715) rail mount
- For 55 Series relays type 55.32
Type 94.73 - Screw terminal (Plate clamp) socket
- 35 mm (EN 60715) rail mount
- For 55 Series relays type 55.33
Type 94.74 - Screw terminal (Plate clamp) socket
- 35 mm (EN 60715) rail mount
- For 55 Series relays type 55.32 and 55.34
Type 94.82 - Screw terminal (Plate clamp) socket
- 35 mm (EN 60715) rail mount
- For 55 Series relays type 55.32
Type 94.84 - Screw terminal (Box clamp) socket
- For panel or 35mm rail mount
- For 55 series relays, Type 55.32 and Type 55.34
Type 94.92 - Screw terminal (Box clamp) socket
- 35 mm (EN 60715) rail mount
- For 55 Series relays type 55.32
Type 94.94 - Screw terminal (Box clamp) socket
- 35 mm (EN 60715) rail mount
- For 55 Series relays type 55.32 and 55.34
Type 94.P3 - socket with Push-in terminals
- Nominal rating 10 A - 250 V
- Dielectric strength 2 kV AC
Type 94.P4 - socket with Push-in terminals
- Nominal rating 10 A – 250 V
- Dielectric strength 2 kV AC
